本日は VContainer の小ネタ枠です。
VContainer の HelloWorld を試したので記事に残します。
今回はユーザの入力を受けて、ロジックが実行されるケースについてです。
前回記事
以下の前回記事の続きです。
bluebirdofoz.hatenablog.com
6. 制御の反転(IoC=Inversion Of Control)
次に Unity の Button コンポーネントを例にユーザの入力を受けて、ロジックが実行されるケースを考えます。
以下のような View コンポーネントを作成します。
using UnityEngine; using UnityEngine.UI; public class HelloScreen : MonoBehaviour { public Button HelloButton; }
View が入力を受けた際の処理については、以下のように仕事を委譲するクラスに記述します。
IStartable は Unity の Start のライフサイクルで処理を行うためのインタフェースです。
using VContainer.Unity; namespace MyGame { // UpdateのEntryPointを作るため、IStartableのインタフェースを実装する public class GamePresenter : IStartable { readonly HelloWorldService helloWorldService; readonly HelloScreen helloScreen; public GamePresenter(HelloWorldService helloWorldService, HelloScreen helloScreen) { this.helloWorldService = helloWorldService; this.helloScreen = helloScreen; } // Startのタイミングで呼ばれる public void Start() { // ボタンのクリックリスナーにボタン押下時の処理を設定する helloScreen.HelloButton.onClick.AddListener(() => { helloWorldService.Hello(); }); } } }
シーン上にボタンを配置します。

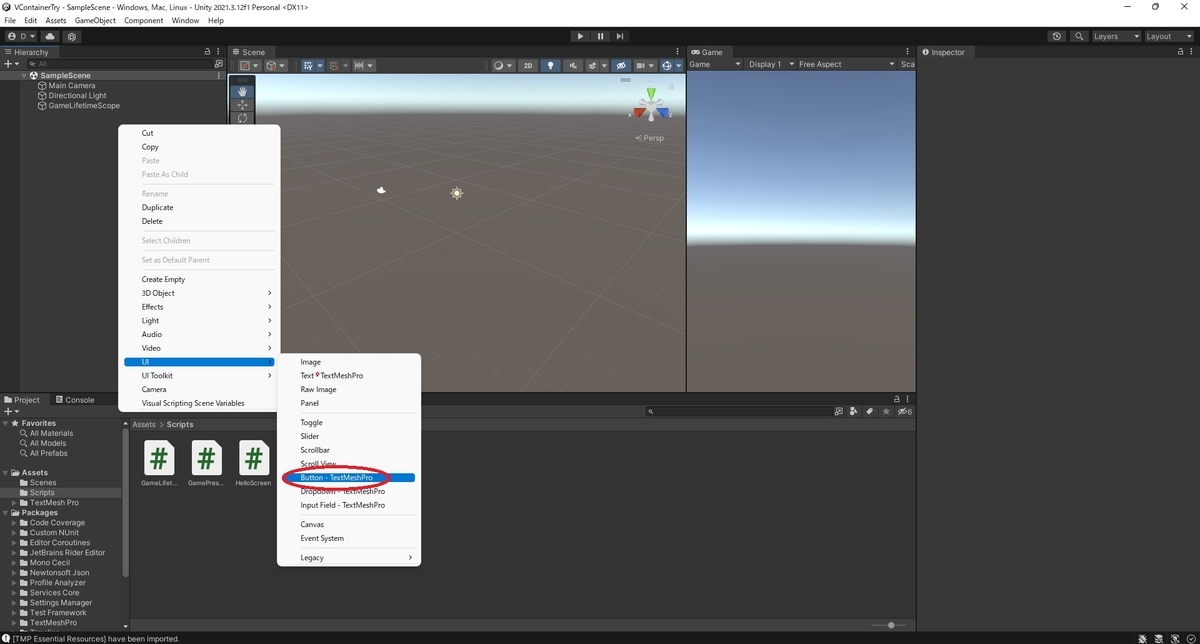

Hierarchy に UI -> Button でボタンオブジェクトを作ります。

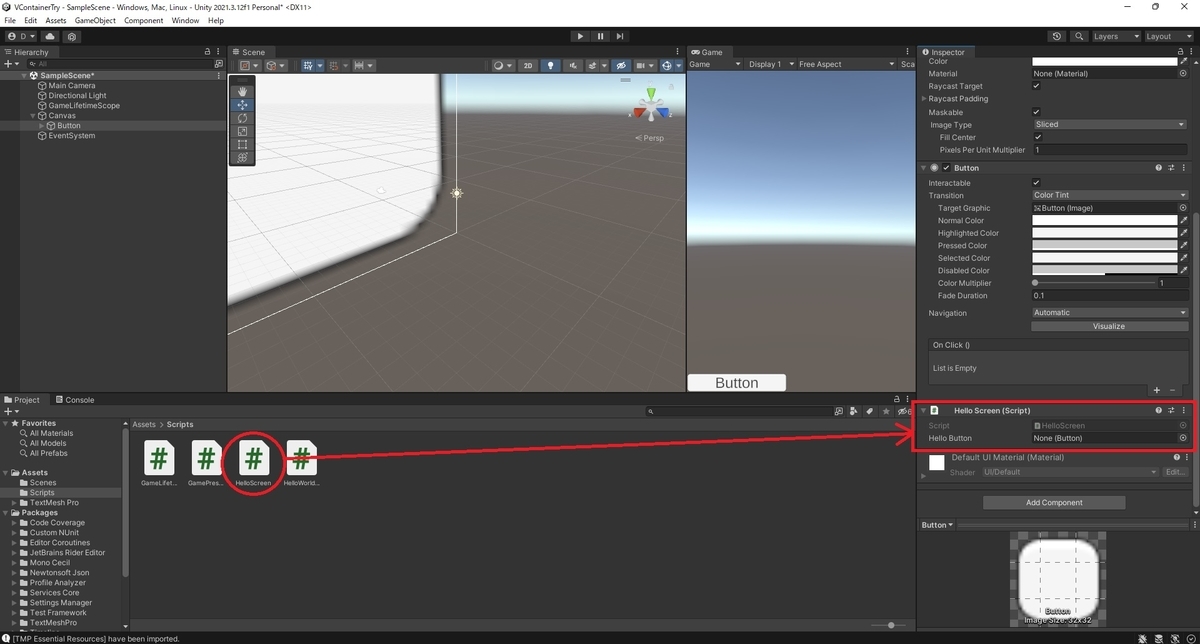

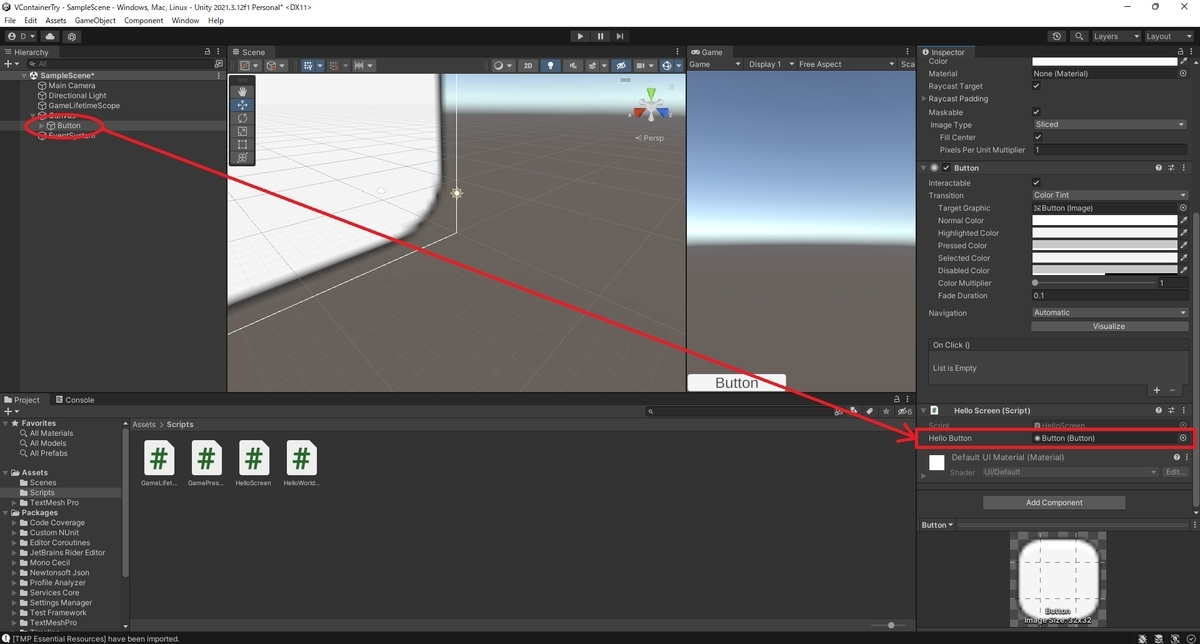

作成したボタンオブジェクトに先ほどの View コンポーネントをアタッチして Button への参照を設定します。
参照関係を解決するため、View コンポーネントもDIコンテナに登録する必要があります。

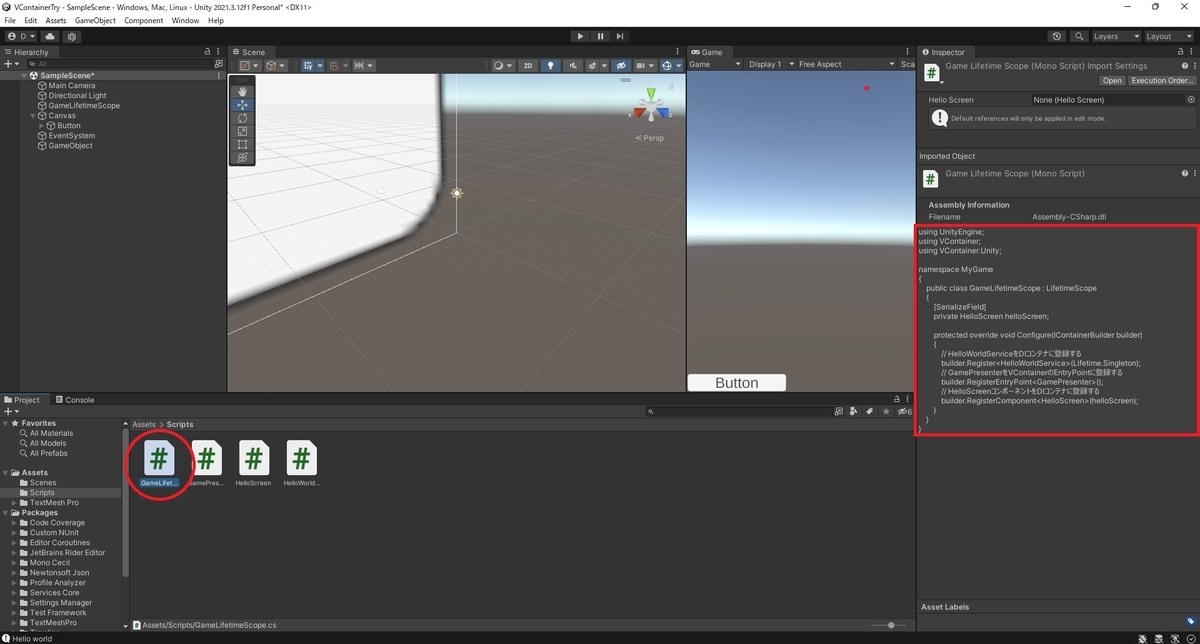

LifetimeScope を継承したクラスを以下の通り更新してDIコンテナへコンポーネントの登録を追加します。
using UnityEngine; using VContainer; using VContainer.Unity; namespace MyGame { public class GameLifetimeScope : LifetimeScope { [SerializeField] private HelloScreen helloScreen; protected override void Configure(IContainerBuilder builder) { // HelloWorldServiceをDIコンテナに登録する builder.Register<HelloWorldService>(Lifetime.Singleton); // GamePresenterをVContainerのEntryPointに登録する builder.RegisterEntryPoint<GamePresenter>(); // HelloScreenコンポーネントをDIコンテナに登録する builder.RegisterComponent<HelloScreen>(helloScreen); } } }

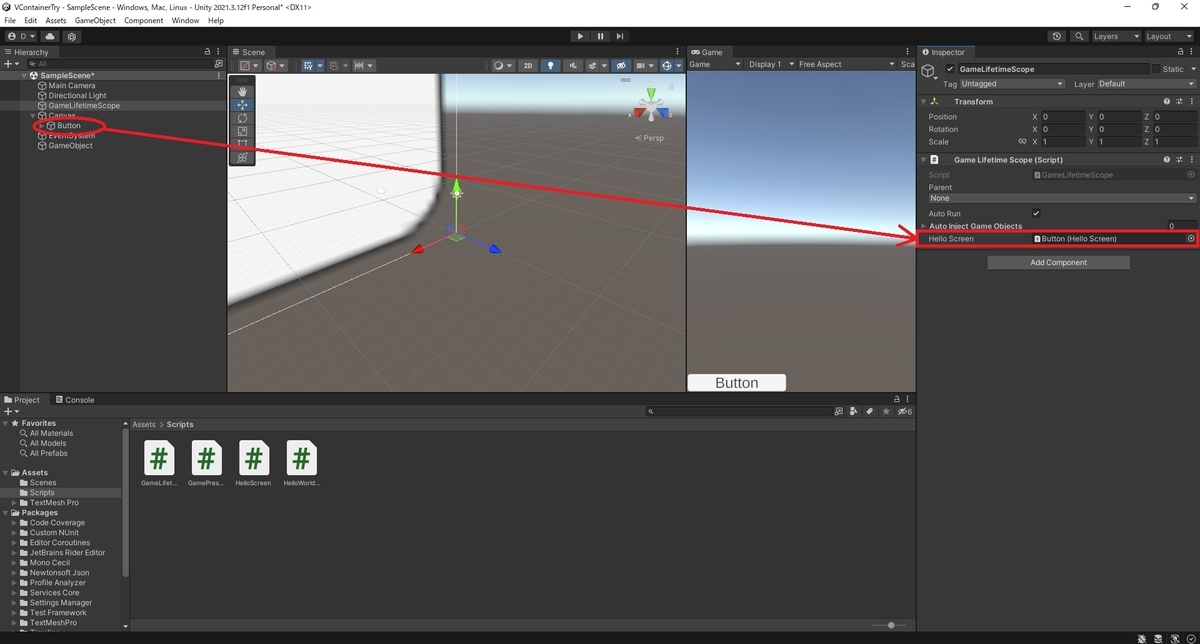

コンポーネントへの参照を Inspector に設定して準備は完了です。
実際にシーンを再生して動作を確認します。
ボタンを押下すると処理が呼び出されることが確認できます。
